- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com.au
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Product Series
- SMT
- Product Type
- Line-interactive UPS

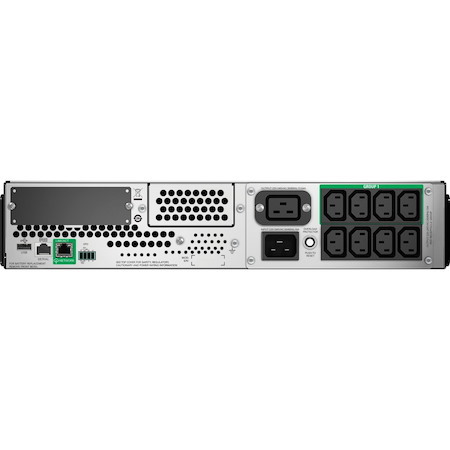

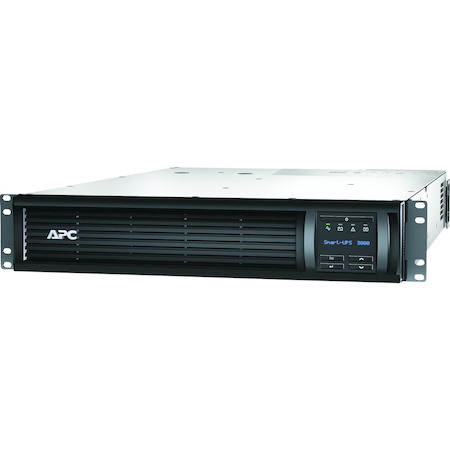

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 3kVA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C20 input, BS1363A British and Schuko CEE 7/EU1-16P input cables, 8 IEC 320 C13 and 1 IEC 320 C19 outlets, and 3 IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
- Technical Information
- Receptacle Type
- IEC Jumper
- IEC 60320 C13
- Receptacle Detail
- 1 x IEC 320-C19
- 3 x IEC Jumper
- 8 x IEC 320-C13
- Number of Battery & Surge Outlets
- 12
- Cord Length
- 2 m
- Transfer Time
- 10 ms
- Power Description
- Load Capacity (VA)
- 3 kVA
- Load Capacity (Watt)
- 2.70 kW
- Input Voltage
- 230 V
- Input Voltage Range
- 160 V AC - 286 V AC
- Output Voltage
- 230 V AC
- Waveform Type
- Sine Wave
- Management
- Network Management
- SmartConnect
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Battery Information
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 3.20 Minute
- Typical Battery Recharge Time
- 3 Hour
- Hot Swappable
- Yes
- Physical Characteristics
- Height
- 86 mm
- Width
- 432 mm
- Depth
- 683 mm
- Rack Height
- 2U
- Form Factor
- Rack-mountable
- Mounting Preference
- No Preference
- Mounting Location
- Front
- Weight (Approximate)
- 44.28 kg
- Miscellaneous
- Optimized Energy Efficiency
- Yes
- Product Take Back Program
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT3000RMI2UC_ROHS_DECLARATION&p_FileName=SMT3000RMI2UCKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=490326943&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=490326943&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
- REACH free of SVHC
- No
- Environmentally Friendly
- Yes
